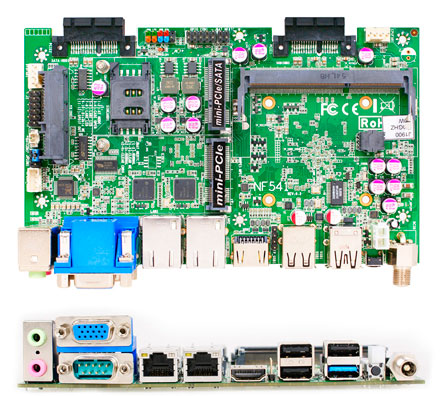

Jetway NF541-1900 (Intel BayTrail)

Jetway NF541-1900 (Intel BayTrail)

  • Intel® Bay Trail-D/M/I Processor
  • Support 1 * DDR3L 1333/1066MHz Single/Dual CH up to 4GB/8GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • 2 * Intel® i211AT PCIe GbE LAN
  • 1 * SIM card holder
  • 1 * Full size mPCIe, 1 * Full size mPCIe shared with mSATA
  • 1 * External COM (RS232/422/485)
  • 1 * External USB3.0, 3 * USB1.1/2.0, 1 * Internal USB1.1/2.0
  • Support CPU Smart FAN
  • Support Watch Dog Timer 0~255 sec
  • Lockable +12V DC-in PWR jack


Share

239.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
Form Factor
Dimensions - 100 * 167 mm
  Processor System
CPU - Intel® Bay Trail-D/M/I
Core Number - BY CPU
Max Speed - BY CPU
L2 Cache - BY CPU
Chipset - SoC
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 2 (full size, one shared with mSATA)
mSATA - 1 (shared with Mini PCIe)
PCIe - 2 ( x1 slot, at side )
CFast Card Socket - 0
CF Card Socket - 0
 Memory
Technology - Single/Dual Channel DDR3L 1333MHz
Max. - 4GB/8GB
Socket - 1 * SO-DIMM
 Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 1 ( Max. Resolution : 2560 * 1600@60Hz)
LVDS - 0
HDMI - 1 ( HDMI 1.4, Max. Resolution : 1920 * 1080@60Hz )
DVI-D - 0
DisplayPort - 0
MultiDisplay - Yes ( 2 Independent Display )
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Intel i211AT
Connector - 2 * RJ 45
Audio
CODEC - HD Audio : Realtek ALC662VD
Channel - 4 Channels
 SATA
Max Data Transfer Rate - 1 * SATAII (3.0Gb/s)
RAID - No
 Rear I/O
VGA - 1
DVI-D - 0
HDMI - 1 (HDMI 1.4)
DisplayPort - 0
Ethernet - 2
USB - 2 (3 * USB 2.0 + 1 * USB 3.0)
Audio - 1 ( Line Out & MIC )
Serial - 1 (RS232/422/485 with 5V/12V selectable header )
eSATA - 0
PS2 - 0
DC-input - 1
 Internal Connector
USB - 1 ( 1 * USB 2.0 via 10pin header )
PS2 - 0
LVDS / inverter - 0
VGA - 0
Serial - 1 (RS232 with 5V/12V selectable header)
SATA - 1 * SATAII (3.0Gb/s)
mPCIe - 2 (full size, one shared with mSATA)
Parallel - 0
mSATA - 1 (shared with mPCIe)
CIR - 0
SIM card holder - 1
GPIO 8-bit - 4in / 4 out
Chassis intrusion - 1 (via 2pin header)
SPDIF - 1
Expansion slot - 2 ( x1 PCIe slot, at side )
AT mode jumper - 1
Audio Amplifier Header - 1 ( 3W Amp )
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - Lockable +12V DC-In (2-pin PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C– 60°C
- Storage: -20°C– 85°C
