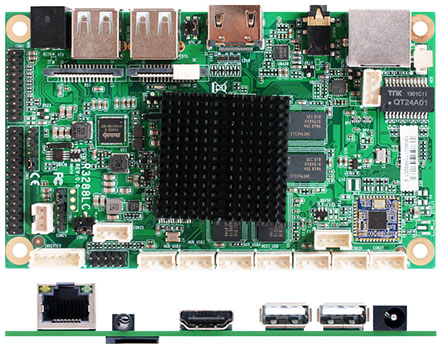

Jetway JR3288LC-2N (ARM Cortex A17, Android 5.1 / Linux Debian 9)

Jetway JR3288LC-2N (ARM Cortex A17, Android 5.1 / Linux Debian 9)

  • Rockchip® ARM Cortex A17 RK3288 Quad-core 1.8GHz
  • On board 1333/2GB DDR3L DRAM up to 4GB)
  • On board 8G Flash ROM up to 64GB
  • 1* Realtek GbE, 1* RS232, 2* UART, 1* Debug, 6* USB2.0, 1* OTG (Co-lay USB2.0)
  • 1* HDMI, 1* eDP, 1* 24-bits Dual CH LVDS, 1* MIPI DSI, 1* MIPI CSI
  • 1* Micro SD Max 64GB)
  • Support 802.11 b/g/n 2.4G, BT-V4.0
  • Support Android 5.1 and Debian9.0


Share

209.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
 Model
Model – JR3288LC-2N
Part Number – JR3288LC-2N
 Form Factor
Dimensions – 120 * 72mm
 Processor System
Processor/CPU – Rock Chip® ARM Cortex A17 RK3288 Quad-core 1.8GHz
– Rock Chip® RK808-B PMU
 Memory
DRAM – Onboard DDR3L 1333MHz 2GB
 Expansion Slot
Dimensions – 1* Micro SD
 Graphics
Graphics – Mali T764 GPU,shared memory
– 1* HDMI (Max Resolution: 1920×1080@60Hz)
– 1* LVDS (Max Resolution: 1920×1200@60Hz)
– 1* eDP (Max Resolution: 2560×1600@60Hz)
– 1* MIPI DSI (Max Resolution: 1920×1080@60Hz)
– Support Dual Displays
 Ethernet
Ethernet – 1* Realtek RTL8211E-VB GbE
Wifi – 1* Realtek RTL8723BS 802.11b/g/n 2.4G WIFI and BT-V4.0
 Audio
Audio – 2 channel HD audio: ES8316
 Storage
Storage – 8GB Flash ROM (Max 64GB)
 I/O Port
Rear I/O – 1* DC Jack (12V)
– 2* USB2.0 (USB1 Co-lay OTG)
– 1* HDMI
– 1* AUDIO
– 1* Micro SD
– 1* Ethernet
Internal I/O – 4* USB2.0
– 3* UART (CON36/39: TTL，CON47: for Debug, CON36 Co-lay RS232/485)
– 1* RS232 (CON37)
– 1* LVDS / Inverter
– 1* eDP
– 1* MIPI DSI
– 1* MIPI CSI
– 1* Speaker (3W AMP)
– 1* GPIO (4 bit)
– 1* I2C
 Watchdog Timer
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (0 ~ 255 sec)
 Power
Power 12V DC-in (PWR Con)
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Compliance
Certifications – CE, FCC, LVD, RoHS, REACH
 Environment
Temperature – Operating: -10°C ~ 60°C
– Storage: -20°C ~ 70°C
 Warranty
Warranty – 2 Years Limited Warranty
Data sheet Download (PDF)
Data sheet Print view
