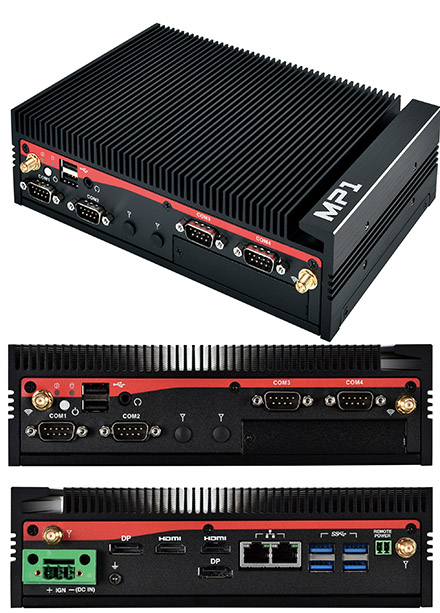

Mitac MP1-11TGS-1145G7E (Intel i5-1145G7E, 2x LAN, 4x RS232) [FANLESS]

Mitac MP1-11TGS-1145G7E (Intel i5-1145G7E, 2x LAN, 4x RS232) <b>[FANLESS]</b>
  • Intel i5 Tiger Lake-UP3 !
  • 2x Gigabit LAN !
  • 4x RS232 !
  • Hot Swap SSD !

  • Intel® i5-1145G7E Processor
  • Outstanding graphic computing capability with Integrated Intel®Iris Xe graphics
  • Intel® vPro technology support
  • 1 x DDR4 SO-DIMM and support up to 32GB
  • Support Quadruple display for HDMI, and DisplayPort
  • 1 x Hot Swappable SSD/HDD slot
  • 2 x Intel® Gigabit Ethernet (Option: additional 2 x LAN)
  • 2 x USB 2.0, 4 x USB 3.1 Gen2 and 4 x COM
  • 8V~24V wide voltage power input


Share

1169.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
SYSTEMCPU11st Gen Tiger Lake-UP3 Intel® Core™ i ULV Processor i3-1115G4E / (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11st Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR4 3200 MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
GRAPHICSIntel® Iris Xe Graphics
DISPLAY INTERFACEDisplayPort 1.2 / HDMI 1.4
STORAGE SLOT1 x Hot Swappable 2.5 HDD / SSD (Maximum 9.5mm height) / 1 x M.2 B Key 2280/2260/2242 Slot
ETHERNETIntel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN / Additional 2 x Intel® I210-IT Giga LAN for Options
AUDIORealtek® ALC256
I/O CHIPSETNuvoton NCT6126D(eSPI)
TPMNuvoton NPCT750AABYX TPM2.0
EXPANSION SLOTWireless: M.2 2230 E key (PCIe, USB) / Storage/LTE/5G Slot: M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIex1/SATAIII) *Not support M.2 M Key NVMe SSD / **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request
INDICATORPower LED / HDD LED
FRONT I/O2 x SMA Antenna (Optional for WiFi/LTE function) / 3 x RS232 / 1 x Audio Combo Jack (Mic-in and Line-out) / 1 x Hot Swappable 2.5” SSD/HDD slot (Maximum 9.5mm height) / 2 x USB 2.0 / 1 x RS232 / 422 / 485 / HDD LED / Power Button w/ Power Indicator
REAR I/O2 x DisplayPort 1.2 / 2 x HDMI 1.4 / 2 x RJ-45 / 4 x USB 3.1 Gen 2 (10 Gbps) / 1 x 3-pin Terminal Block Power Input / 1 x 2-pin Terminal Block Remote Power on / off / 2 x SMA Antenna (Optional for WiFi/LTE function)
H/W MONITORTemperature Monitor / Voltage Monitor
WATCHDOG TIMER1~255 steps by software program
POWER REQUIREMENTPOWER INPUT8~24V Wide Range DC Input w/ Terminal Block Connectivity / *Power Ignition Xpansion module is only optional in MP1-11TGS-D model.
POWER ADAPTERDC24V / 3A / AC / DC / 72W adapter (For AC SKU)
MECHANICALTHERMAL DESIGNFanless
MOUNTINGWallmount / Side Mount / 75 mm x 75 mm VESA Holes & Din Rail Mount Combo Kit (Optional)
DIMENSIONS (W X D X H)8.3” x 5.9” x 2.5” (210 x 150 x 63 mm)
WEIGHT2.1kg (4.6 lb)
MATERIALTop cover: Aluminum Alloy / Bezel and chassis: Steel
ENVIRONMENTALOPERATING TEMPERATURE15W TDP: -40 ~ 70°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM) / 28W TDP: -40 ~ 60°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
VIBRATION RESISTANCEOperating: 5Hz~500Hz / 3Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
SHOCK RESISTANCEOperating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
CERTIFICATIONCE / FCC Class A
OSOS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKING LISTPACKAGE1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets / 1 x 3 pin Terminal Block Power Connector / 1 x 2 pin Terminal Block Male Connector
