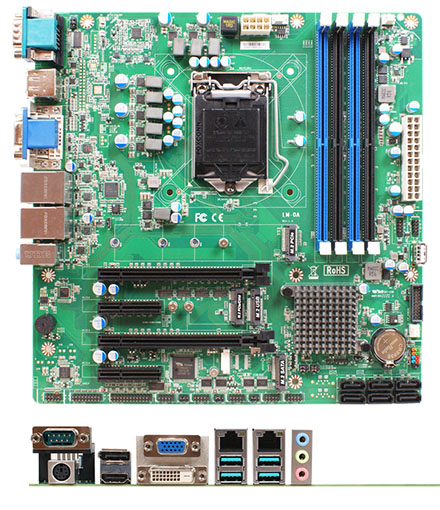

Jetway JLM-0A1 (LGA1151 Coffee Lake-S Q370, 2x LAN, 2x COM)

Jetway JLM-0A1 (LGA1151 Coffee Lake-S Q370, 2x LAN, 2x COM)
  • LGA1151 !
  • 2x COM !
  • 2x LAN !
  • Micro ATX Format !

  • Intel® LGA1151 Socket supports 9th/8th Gen. Core Processor (Max 95W)
  • Intel® Coffee Lake-S Q370 Chip
  • Support 4* DDR4 2666/2400/2133MHz up to 128GB
  • 1* Intel® I219-V GbE + 1* Intel® i210AT GbE
  • 6* SATA III (6Gb/s) & 2* M.2 (M key), 1* M.2 (E key) supports CNVi, 2* PCI-E x16, 2* PCI-E x4
  • VGA/DVI-D/HDMI/DP/LVDS Output
  • 2* RS232/422/485 (COM1/2), 4*RS232
  • 5* USB3.1, 6* USB2.0
  • ATX Power Input
  • Micro ATX Form Factor (244 x 244 mm)


Share

369.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

Build/Install:
 Model
Model – JLM-0A1
 Form Factor
Form Factor – Micro ATX (244 x 244 mm)
 Processor System
Processor/CPU – Intel® LGA1151 Socket supports 9th/8th Gen. Core Processor (Max 95W)
– Intel Q370 chipset
– AMI 128Mb Flash ROM BIOS
 Memory
Memory – 4* Long DIMM DDR4 2666/2400/2133 MHz DRAM up to 128GB
 Expansion Slot
Dimensions – 2* M.2 (M key): 1* 2242/2280/22110 (support NVMe), 1* 2242 (SATA interface, co-lay SATA6)
– 1* M.2 (B key, 3042/3052) support 3G/4G/5G Module
– 1* M.2 (E key, 2230) support CNVi
– 6* SATAIII (SATA6 co-lay M.2 2242, support RAID 0/1/5/10)
– 2* PCI-E x16
– 2* PCI-E x4
– 1* SIM card holder (Nano)
 Graphics
Graphics – Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1200@60Hz, Co-lay LVDS)
– 1* LVDS (Max Resolution: 1920×1200@60Hz, Co-lay VGA, Option)
– 1* HDMI 1.4 (Max Resolution: 4096×2304@24Hz)
– 1* DVI-D (Max Resolution: 4096×2304@24Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– Support Triple Displays
 Ethernet
Ethernet – 1* Intel® I219-V GbE
– 1* Intel® i210AT GbE
 Audio
Audio – HD audio: Realtek ALC662VD
 I/O Port
Rear I/O – 1* VGA
– 1* DVI-D
– 1* HDMI
– 1* DP
– 2* RJ45
– 4* USB3.1
– Line-in, Line-out, MIC
– 1* RS232/422/485 (support 5/12V TTL)
– 1* PS/2
Internal I/O – 1* USB 3.0 (Gen.1)
– 5* USB 2.0
– 1* USB 2.0 (Erect)
– 1* LVDS (Co-lay VGA)
– 5* COM (COM2: RS232/422/485, COM3/4/5/6: RS232, COM2/3/4: Support 5/12V TTL)
– 6* SATAIII (6.0Gb/s, SATA6 co-lay M.2 M key)
– 4* M.2 (2* M key, 1* E key, 1* B key)
– 1* Parallel
– 1* GPIO (16 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS/I2C
– 1* AT mode
– 1* TPM2.0 (Option)
 SATA
SATA – 6* SATAIII (6.0Gb/s, support RAID 0/1/5/10)
 Watchdog Timer
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
 Power
Power ATX PWR (8+24 pin)
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Compliance
Certifications – CE, FCC, RoHS, REACH
 Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
