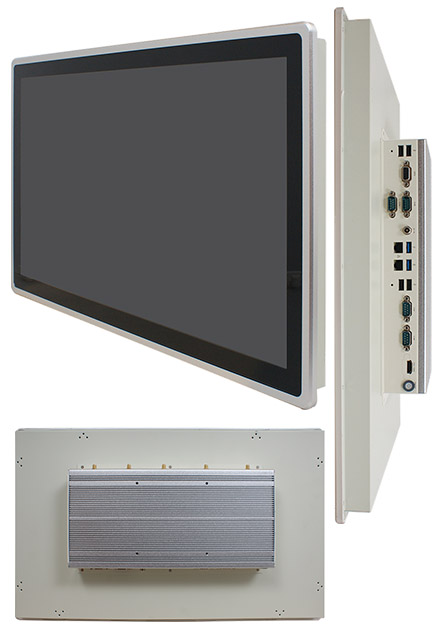

Jetway HPC215SC-FP6412 PanelPC (Intel Elkhart Lake J6412) [21.5" Touch Panel TFT, IP65, 9-28V DC-in]

Jetway HPC215SC-FP6412 PanelPC (Intel Elkhart Lake J6412) [21.5" Touch Panel TFT, <b>IP65, 9-28V DC-in</b>]
  • Intel J6412 !
  • IP65 !
  • 9-28V DC !

  • 21.5″ 250 nits high brightness TFT LCD with LED backlight
  • 10-points Multi Capacitive Touch
  • Cable less, Streamlined enclosure for highly efficient heat dissipation. Enclosed in robust aluminum casings
  • Edge-to-edge narrow bezel design and Fanless cooling system
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • USB2.0 Support Lock Device
  • Front IP65 for protection against water and dust
  • 9-28V DC-input Support, with EOS, OVP design
  • Support TPM2.0 (HPC215SC-FP6412T2 only)
  • VESA Support 100x100mm
[more]

Share

1049.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:

  • 21.5″ 250 nits high brightness TFT LCD with LED backlight
  • 10-points Multi Capacitive Touch
  • Cable less, Streamlined enclosure for highly efficient heat dissipation. Enclosed in robust aluminum casings
  • Edge-to-edge narrow bezel design and Fanless cooling system
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • USB2.0 Support Lock Device
  • Front IP65 for protection against water and dust
  • 9-28V DC-input Support, with EOS, OVP design
  • Support TPM2.0 (HPC215SC-FP6412T2 only)
  • VESA Support 100x100mm


Model – HPC215SC-FP6412
Main System – Intel® Elkhart Lake J6412 2.0GHz/QC processor
– DDR4-3200MHz SO-DIMM up to 32GB
– 128MB SPI Flash ROM BIOS
– 2* 3W/8Ω speaker
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10/ 11 / Linux (Option)
Display – IP65, NEMA 4 rugged protection, Full planar metal border
– 21.5″ With LED Backlight
– 250nits Brightness (cd/m²)
– 16.7M display color
– 1920 x1080 @ 60Hz resolution
– 170°/160° viewing angle (H/V)
– 0.24825 x 0.24825mm pixel pitch
– 16:9 aspect ratio
– 1000:1 contrast ratio
– 8ms response time
Touch Screen – Projected capacitive type
– 524.00 x 321.8mm ±0.3mm
– Transparency ≧85%
– Surface Hardness ≧6H (JIS-5400)
– Glass haze value ≦3%
I/O Connector – 2* USB3.2 (Gen1)
– 4* USB2.0
– 1* 8bit GPIO
– 2* RS232
– 2* RS232/422/485
– 1* HDMI2.0 (Max Resolution: 3840 x 2160@60Hz)
– 2* Intel® i225-V 2.5GbE
– 1* Locking Jack 9~28V DC input
– 1* Power button
Storage – 1* 2.5” SATA bay
– 1* M.2 M key (2242/2280, SATA/NVMe)
Expansion – 1* M.2 E-key (2230 for WIFI/BT Module)
– 1* M.2 B-key (3042/3052 for 4G/5G Module)
Case – Aluminum panel
– Iron case
– Silver + White color
– Spray paint coating requirement
Power – AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse
– Consumption: 32.75W
Compliance – CE, FCC, IP65 (Front)
Safety – Shock: 15G, 11ms duration
– Vibration: 5~500Hz/1 Grms
Dimensions – 535.80 x 303.31.00 x 83.50mm
Temperature – Operating: -10°C ~ 60°C (with W.T. DRAM/HDD in airflow condition)
– Operating: -10°C ~ 60°C (with W.T. DRAM/HDD)
– Storage: -20°C ~70°C
